Home  >  HVAC/R Components  >  Universal TXVs  > MARS UNIV AC/HP TXV 1.5-3 454B

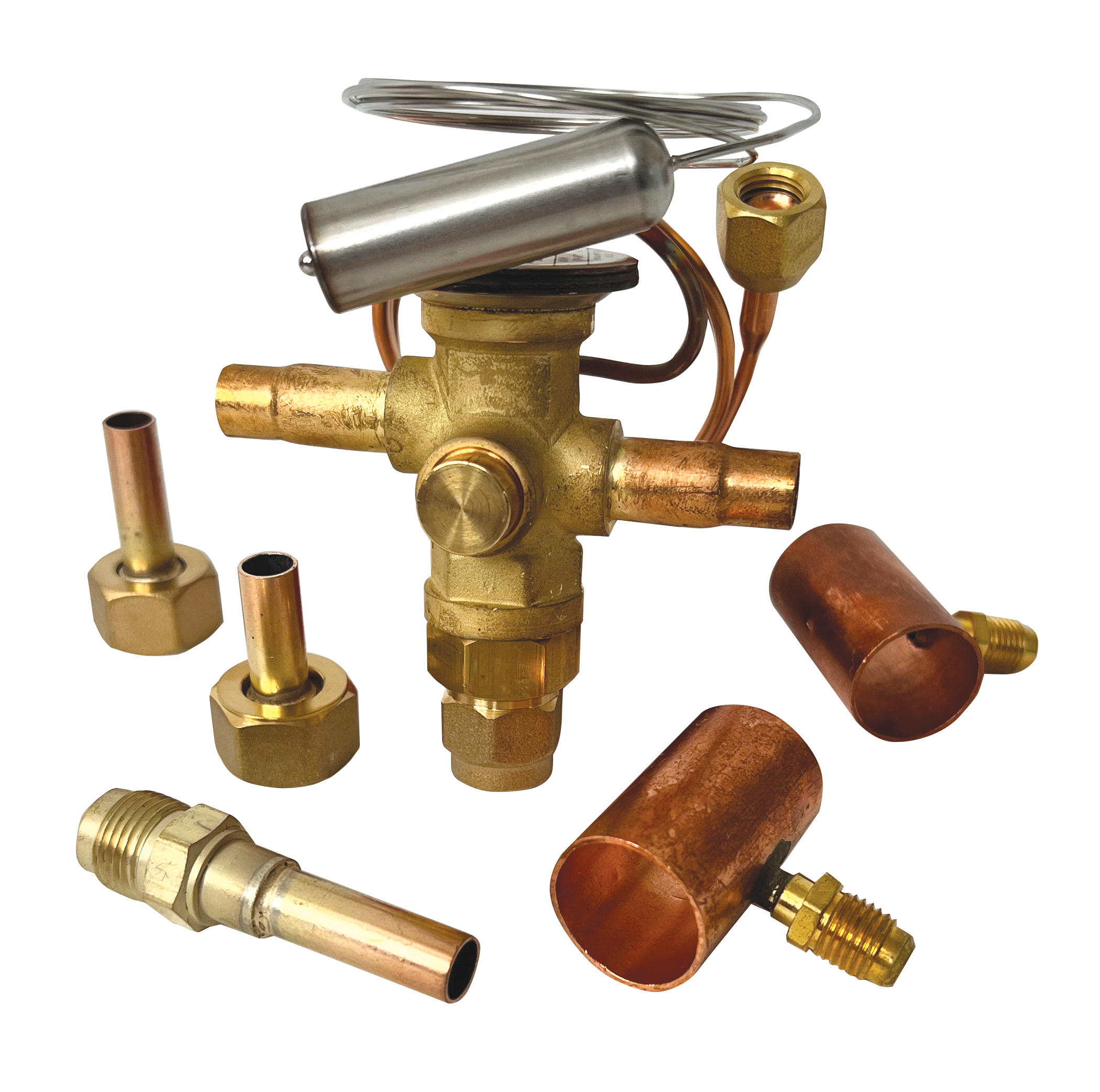

MARS UNIV AC/HP TXV 1.5-3 454B

Inlet (in.) 3/8 Outlet (in.) 3/8 Equalization External Capacity (Tons) 1 1/2 to 3 Refrigerant R454B Inlet connection type SOLDER Nom. Capacity (Tons) 3 Application AC and Heat Pumps Outlet connection type SOLDER Balanced Port Yes Bulb Charge MAH Anti-Hunt Included Evaporator Fittings Aeroquip, Chatleff, 3/8 Flare Included Equalization Fittings 7/8" and 3/4" X 1/4"
Item #: 72008
MARS UNIV AC/HP TXV 1.5-3

MARS Universal AC/HP TXV

  • Use as efficiency upgrade or for failed valve
  • Kitted with most necessary fittings
  • Includes Chatleff, Aeroquip, & 3/8" flare fittings
  • Includes 7/8" and 3/4" x 1/4" equalization tees
  • Robust stainless steel power element and cap tube
  • Easy to select using refrigerant and system cap.

Expansion Valves

Inlet (in.)
3/8
Outlet (in.)
3/8
Equalization
External
Capacity (Tons)
1 1/2 to 3
Refrigerant
R454B
Inlet connection type
SOLDER
Nom. Capacity (Tons)
3
Application
AC and Heat Pumps
Outlet connection type
SOLDER
Balanced Port
Yes
Bulb Charge
MAH Anti-Hunt
Included Evaporator Fittings
Aeroquip, Chatleff, 3/8 Flare
Included Equalization Fittings
7/8" and 3/4" X 1/4"
Brand
MARS
Pack Qty
1
Case Qty
12
Length
4.88 in.
Width
5.27 in.
Height
4.25 in.
Weight
1.6000 lbs
Harmonized Tariff Code
8481809015
UPC
685744720089
Country of Origin Code
MX
Country of Origin Name
Mexico
